Ersatzteil

X-Swv 35 L

Art.Nr.87003553

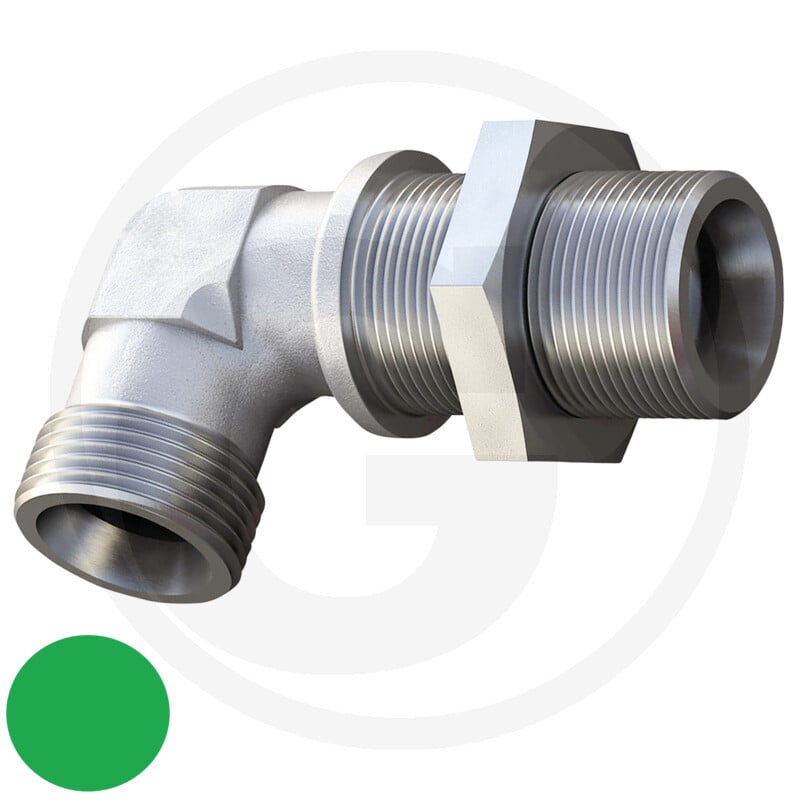

Die Winkel-Schottverschraubung GRANIT X-SWV 35 L ist ein Ersatzteil für verschiedene Granit Maschinen. Sie gehört zur Baureihe 35 L und weist eine Nenndruckstufe (PN) von 160 bar auf. Die Verschraubung verfügt über einen Winkel und ist aus Stahl gefertigt. Die technischen Maße betragen L1: 45 mm, L2: 34,5 mm, L3: 39 mm, L4: 36,5 mm und L5: 86 mm. Das Anschlussgewinde beträgt M42 x 2,0 und M45 x 2,0. Die Oberfläche ist Cr6-frei.

Produktdetails
  • Hersteller: Granit
  • Artikelnummer: 87003553
  • Typ: Winkel-Schottverschraubung
  • Passend für: Granit Maschinen (Baureihe 35 L)
  • Kategorie: Ersatzteil
  • PN (bar): 160
  • Anschlussgewinde: M42 x 2,0 / M45 x 2,0
  • Material: Stahl
  • Oberfläche: Cr6-frei

Technische Spezifikationen

HerstellerGRANIT
