Pnb 16 Sfs 3/4'' 45 Grad M

Art.Nr.81502340

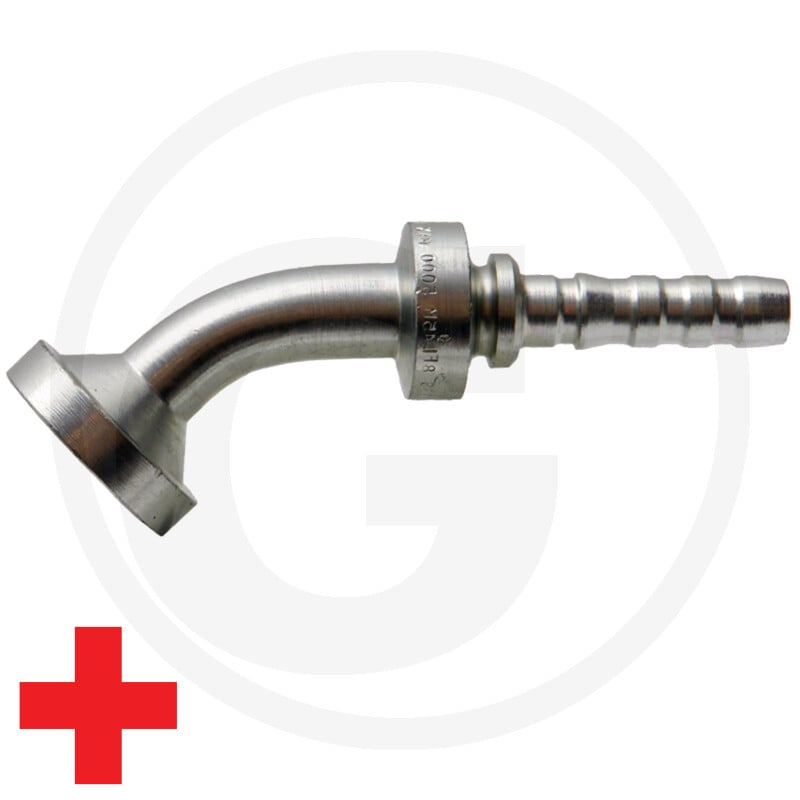

Dieser Gates PNB 16 SFS 3/4" 45°M ist ein SAE-Flansch Schwer 45°, der als Ersatzteil für Granit Maschinen geeignet ist. Der Flansch gehört zur Baureihe 6000 PSI.

Technische Details umfassen eine Nennweite von DN 16, eine Baugröße-Flansch von 3/4", eine Breite (A) von 127,0 mm, eine Höhe (B) von 76,7 mm, ein Maß E von 26,0 mm und ein Maß K von 41,3 mm. Das Gewicht des Flansches beträgt 268 g.

Als Komponente im Hydrauliksystem trägt der Flansch zur sicheren Verbindung und Abdichtung von Fluiden bei.

Produktdetails
  • Hersteller: Gates
  • Artikelnummer: 81502340
  • Typ: SFS 45°
  • Passend für: Granit Maschinen
  • Kategorie: Ersatzteil
  • Nennweite: DN 16 - 5/8"
  • Baugröße-Flansch: 3/4"
  • Breite (A): 127,0 mm
  • Höhe (B): 76,7 mm
  • Maß E: 26,0 mm
  • Maß K: 41,3 mm
  • Baureihe: 6000 PSI
  • Gewicht: 268 g

Technische Spezifikationen

HerstellerGRANIT
Gewicht0,268 KG
