Ersatzteil

Pnb 32 Sfs 1 1/2'' 45 Grad M

Art.Nr.81502346

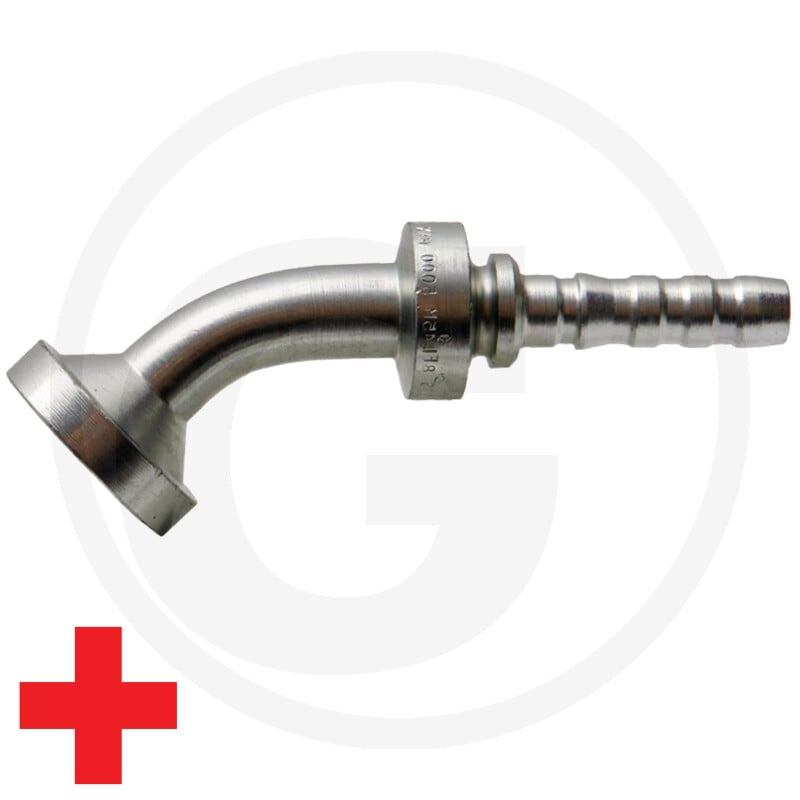

Dieser Flansch vom Typ SFS 45°M ist ein OE-konformer Ersatzteil für diverse Maschinen. Er zeichnet sich durch eine Nennweite von DN 32 - 1 1/4" und eine Baugröße-Flansch von 1 1/2" aus. Die technischen Maße betragen A: 176,0 mm, B: 104,9 mm, E: 44,0 mm und K: 63,5 mm. Der Flansch gehört zur Baureihe 6000 PSI und hat ein Gewicht von 10 g.

Als SAE-Flansch Schwer 45° dient dieser Komponente als wichtiger Bestandteil des Systems.

Produktdetails
  • Hersteller: Granit
  • Artikelnummer: 81502346
  • Typ: SFS 45°M
  • Passend für: Diverse Maschinen
  • Kategorie: Ersatzteil
  • Nennweite: DN 32 - 1 1/4"
  • Baugröße-Flansch: 1 1/2"
  • A (mm): 176,0
  • B (mm): 104,9
  • E (mm): 44,0
  • K (mm): 63,5
  • Baureihe: 6000 PSI
  • Gewicht: 10 g

Technische Spezifikationen

HerstellerGRANIT
Gewicht0,010 KG
