Pnb 12 Sfs 1/2'' 45 Grad M

Art.Nr.81502338

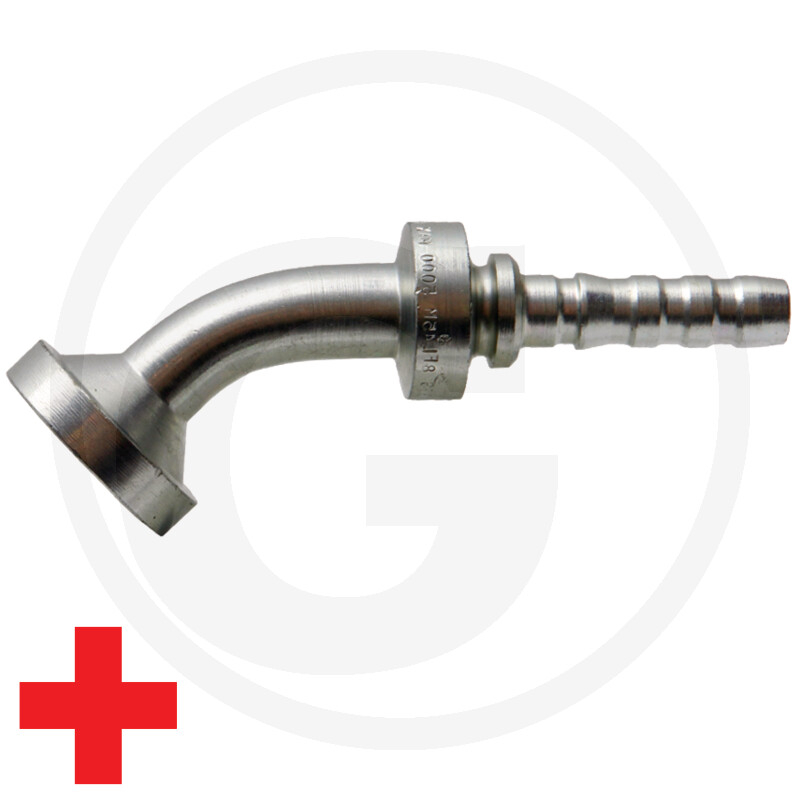

Dieser Gates PNB 12 SFS 1/2" 45°M ist ein SAE-Flansch Schwer 45°, der als Ersatzteil für Granit Maschinen geeignet ist. Der Flansch hat eine Nennweite von DN 12 (1/2") und eine Baugröße-Flansch von ebenfalls 1/2". Die technischen Maße betragen A: 94,0 mm, B: 56,6 mm, E: 19,0 mm und K: 31,8 mm. Er gehört zur Baureihe 6000 PSI und hat ein Gewicht von 10 g.

Als OE-konformer Ersatzteil gewährleistet dieser Flansch eine zuverlässige Funktion im Gesamtsystem.

Produktdetails
  • Hersteller: Gates
  • Artikelnummer: 81502338
  • Typ: SFS 45°
  • Passend für: Granit Maschinen
  • Kategorie: Ersatzteil
  • Nennweite: DN 12 - 1/2"
  • A (mm): 94,0
  • B (mm): 56,6
  • E (mm): 19,0
  • K (mm): 31,8
  • Baureihe: 6000 PSI

Technische Spezifikationen

HerstellerGRANIT
Gewicht0,010 KG
