Ersatzteil

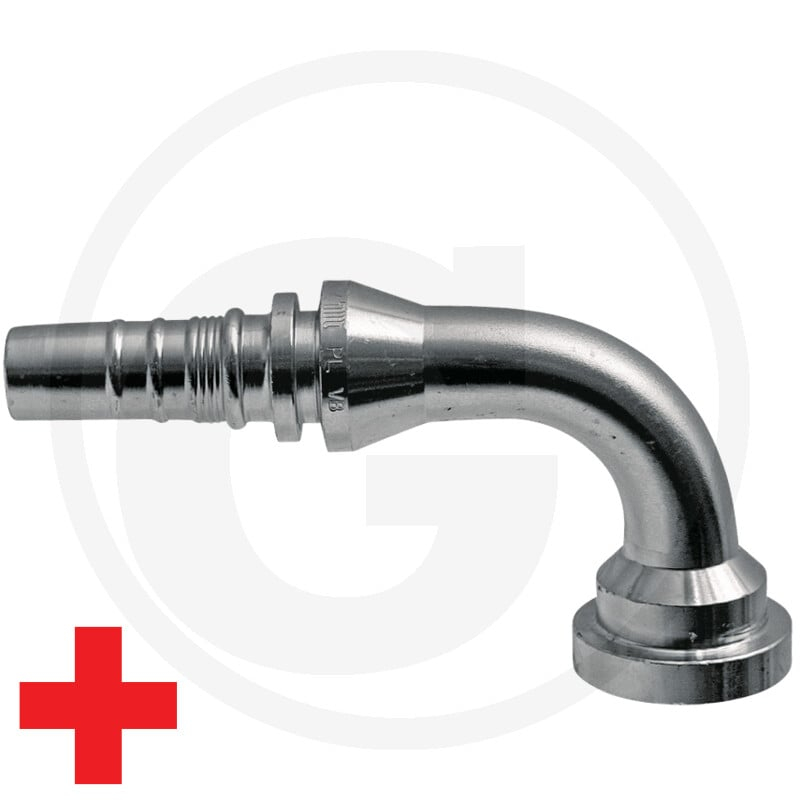

Pn 25 Sfs 1.1/4'' 90 Il

Art.Nr.815M43690-16-20

Dieser Manuli PN 25 SFS 1.1/4" 90° IL ist ein Ersatzteil für Hydrauliksysteme. Das Teil gehört zur Baureihe 6000 PSI und verfügt über eine Typformel SFS 90°. Es handelt sich um einen SAE-Flansch Schwer mit einem Winkel von 90°. Die Nennweite beträgt DN 25 - 1" und der Flansch ist 1.1/4" breit. Die technischen Maße betragen A 78,6 mm, B 26,0 mm, D 54,2 mm und E 76,0 mm. Der O-Ring hat die Maße 37,7 x 3,5 mm. Das Gewicht des Teils beträgt 724 g.

Produktdetails
  • Hersteller: Granit
  • Artikelnummer: 815M43690-16-20
  • Passend für: Granit Maschinen
  • Kategorie: Ersatzteil
  • A (mm): 78,6
  • B (mm): 26,0
  • D (mm): 54,2
  • E (mm): 76,0
  • O-Ring: 37,7 x 3,5
  • Gewicht: 724 g

Technische Spezifikationen

HerstellerGRANIT
Gewicht0,724 KG
