Pn 38 Sfs-Cat 2'' 90 Il

Art.Nr.815M43990-24-32

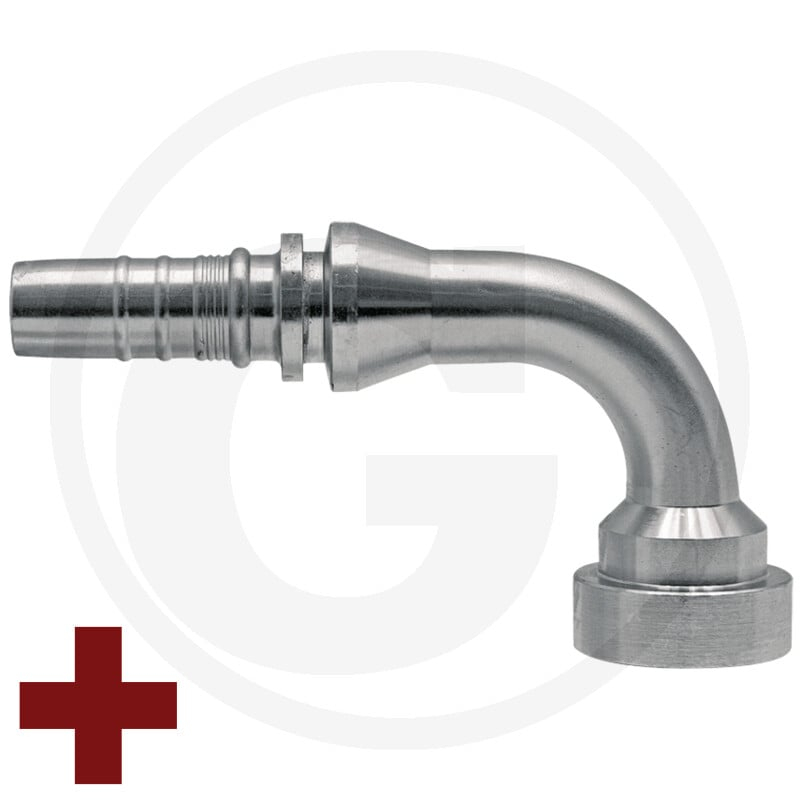

Dieser Manuli PN 38 SFS-CAT 2" 90° IL ist ein Ersatzteil für Granit Maschinen. Das Teil ist ein SAE-Flansch Schwer, ausgeführt in 90°. Die Nennweite beträgt DN 38, der Flansch ist 2 Zoll. Technische Details umfassen A (115,0 mm), B (42,0 mm), D (79,3 mm), E (112,0 mm) und S (14,3 mm). Ein O-Ring mit den Maßen 56,7 x 3,5 ist ebenfalls Bestandteil.

Als Flansch dient dieses Teil der sicheren Verbindung von Komponenten innerhalb des Systems.

Produktdetails
  • Hersteller: Granit
  • Artikelnummer: 815M43990-24-32
  • Passend für: Granit Maschinen
  • Kategorie: Ersatzteil
  • Nennweite: DN 38
  • Flansch: 2 Zoll
  • A (mm): 115,0
  • B (mm): 42,0
  • D (mm): 79,3
  • E (mm): 112,0
  • S (mm): 14,3
  • O-Ring: 56,7 x 3,5

Technische Spezifikationen

HerstellerGRANIT
