Ersatzteil

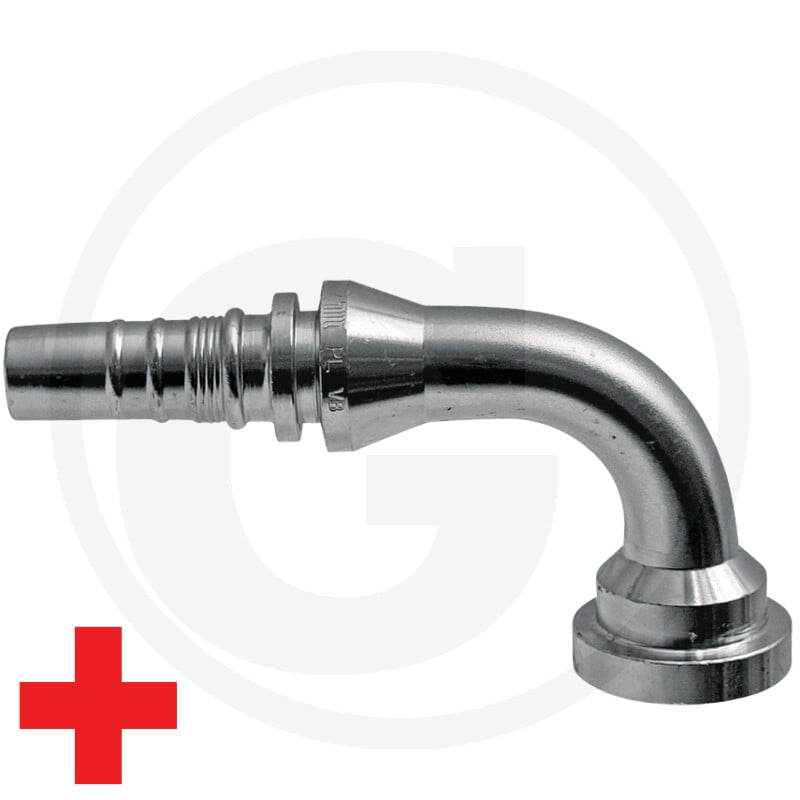

Pn 20 Sfs 3/4'' 90 Il

Art.Nr.815M43690-12-12

Dieser Manuli PN 20 SFS 3/4" 90° IL Flansch von Granit ist ein Ersatzteil für hydraulische Systeme. Der SAE-Flansch Schwer mit 90° Winkel verfügt über eine Nennweite von DN 19 - 3/4" und einen 3/4"-Flansch. Die technischen Daten umfassen A (72,4 mm), B (16,0 mm), D (41,4 mm), E (59,0 mm) und einen O-Ring mit den Maßen 25,0 x 3,5 mm. Der Flansch gehört zur Baureihe 6000 PSI und wiegt 388 g.

Produktdetails
  • Hersteller: Granit
  • Artikelnummer: 815M43690-12-12
  • Typ: SFS 90°
  • Passend für: Diverse hydraulische Systeme
  • Kategorie: Ersatzteil
  • Nennweite: DN 19 - 3/4"
  • Flansch: 3/4"
  • A (mm): 72,4
  • B (mm): 16,0
  • D (mm): 41,4
  • E (mm): 59,0
  • O-Ring: 25,0 x 3,5
  • Baureihe: 6000 PSI
  • Gewicht: 388 g
Hinweis

Bitte prüfen Sie die Kompatibilität mit Ihrem spezifischen System.

Technische Spezifikationen

HerstellerGRANIT
Gewicht0,388 KG
