Ersatzteil

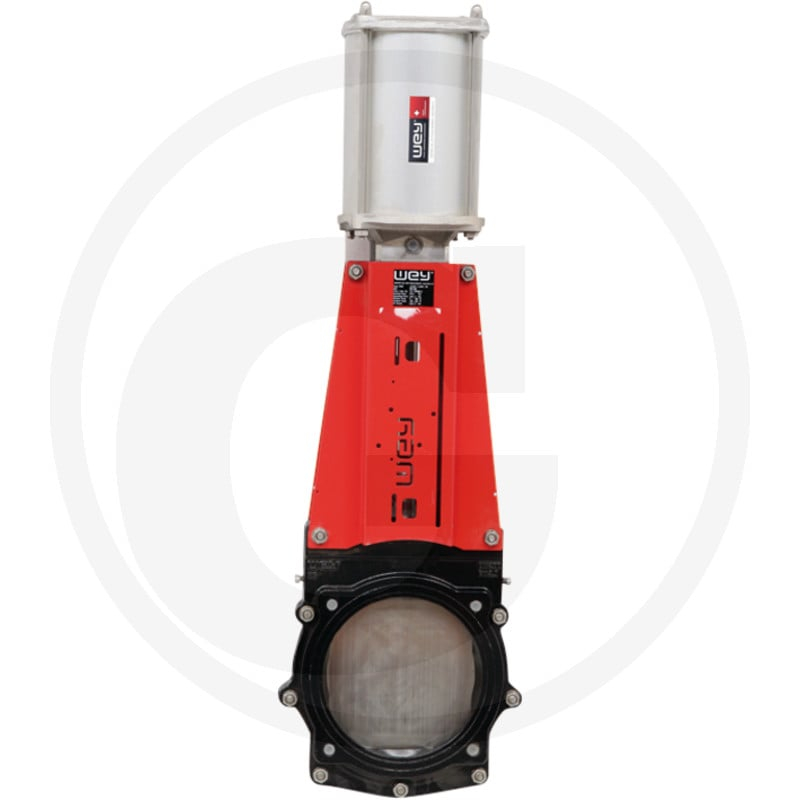

Wey Plattenschieber Vnc Dn 200
€ 2.475,95 mit Tagesbestellung
€ 2.352,15 mit Wochenbestellung
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 4051VNC200A226
Bei diesem Produkt handelt es sich um Sperrgut. Frachtkosten werden auf Anfrage berechnet.
Produkt jetzt anfragenProduktbeschreibung
4051VNC200A226
Gra
WEY PLATTENSCHIEBER VNC DN 20
1913,75
G902
22.01.2020
Technische Spezifikationen
| Slide type | Knife gate valve |
| Slide operation | Pneumatic, double-acting |
| Connection type | Flange → flange |
| Nominal width (mm) | 200 |
| Nominal width (inches) | 8" |
| Connection | 1/4” thread |
| DN (mm) | 200 |
| Installation dimensions (mm) | 60 |
| Technical data | Connection DIN hole pattern |
| Hole pattern (mm) | 295 |
| Nominal pressure (bar) | 8 |
| Control pressure (bar) | 6 |
| Version | Pneumatic, double-acting |
| Sperrgut | Ja |
| Gewicht | 130,000 KG |
