Ersatzteil

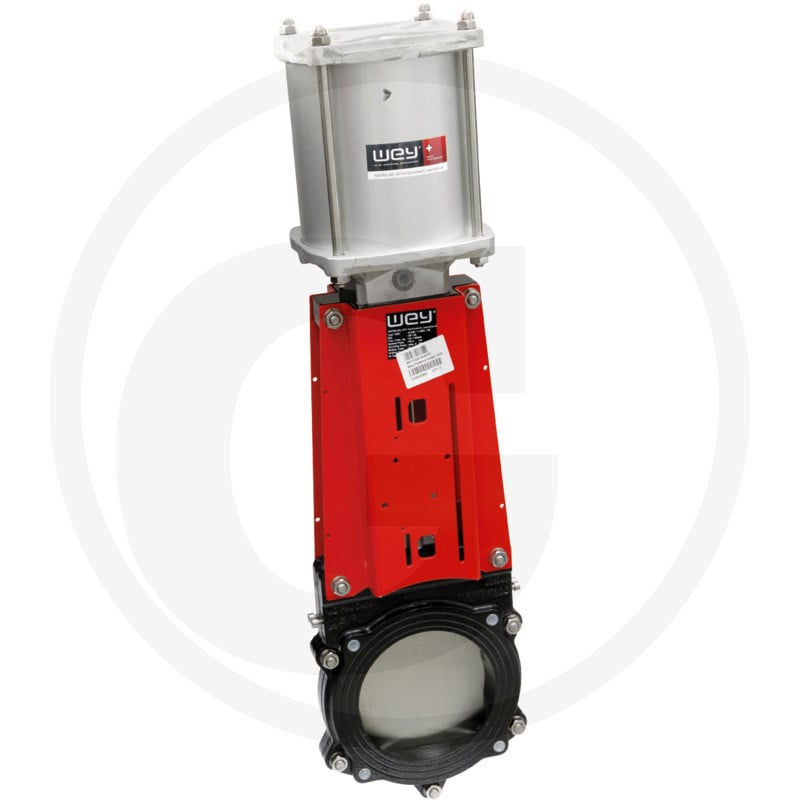

Wey Plattenschieber Vgc Dn 200
€ 2.834,87 mit Tagesbestellung
€ 2.693,13 mit Wochenbestellung
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 4051VGC200A228
Produktbeschreibung
4051VGC200A228
Gra
WEY PLATTENSCHIEBER VGC DN 20
2596,10
G902
22.01.2020
Technische Spezifikationen
| Slide type | Knife gate valve |
| Slide operation | Pneumatic, double-acting |
| Connection type | Flange → flange |
| Nominal width (mm) | 200 |
| Nominal width (inches) | 8" |
| Connection | 1/4” thread |
| DN (mm) | 200 |
| Installation dimensions (mm) | Flange: 60 |
| Technical data | Connection M12 |
| Hole pattern (mm) | 180 x 180 |
| Nominal pressure (bar) | 2,5 |
| Control pressure (bar) | 6 |
| Gewicht | 1,000 KG |
