Startseite » Ersatzteile » Granit » Pnb 20 Sfl 1'' 22 Grad M
Ersatzteil

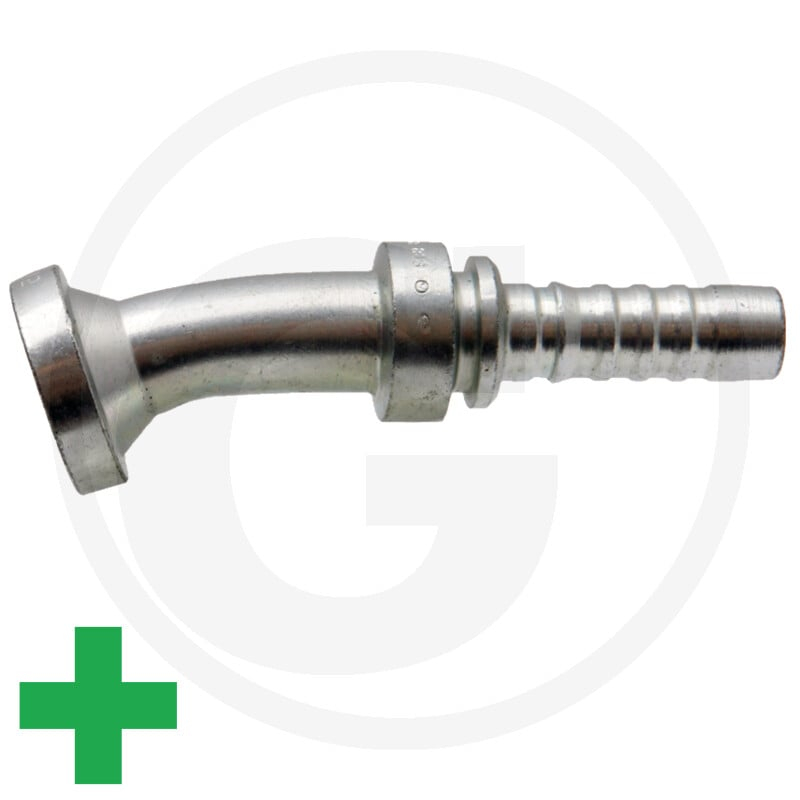

Pnb 20 Sfl 1'' 22 Grad M

Art.Nr.81501970

Der Gates PNB 20 SFL 1" 22°M ist ein SAE-Flansch Leicht mit einem Winkel von 22°. Er gehört zur Baureihe 3000 PSI und hat eine Nennweite von DN 20 - 3/4". Der Flansch ist als Ersatzteil konzipiert und dient der Verbindung von hydraulischen Systemen. Die technischen Daten umfassen eine A-Maß von 133,0 mm, ein B-Maß von 82,0 mm, ein E-Maß von 14,0 mm und ein K-Maß von 38,1 mm. Das Gewicht beträgt 10 g.

Produktdetails
  • Hersteller: Granit
  • Artikelnummer: 81501970
  • Typ: SFL 22°
  • Passend für: Diverse Maschinen
  • Kategorie: Ersatzteil
  • Nennweite: DN 20 - 3/4"
  • Baugröße-Flansch: 3/4"
  • A (mm): 133,0
  • B (mm): 82,0
  • E (mm): 14,0
  • K (mm): 38,1
  • Baureihe: 3000 PSI

Technische Spezifikationen

HerstellerGRANIT
Gewicht0,010 KG
