Pnb 12 Sfs 3/4'' 90 Grad M

Art.Nr.81502355

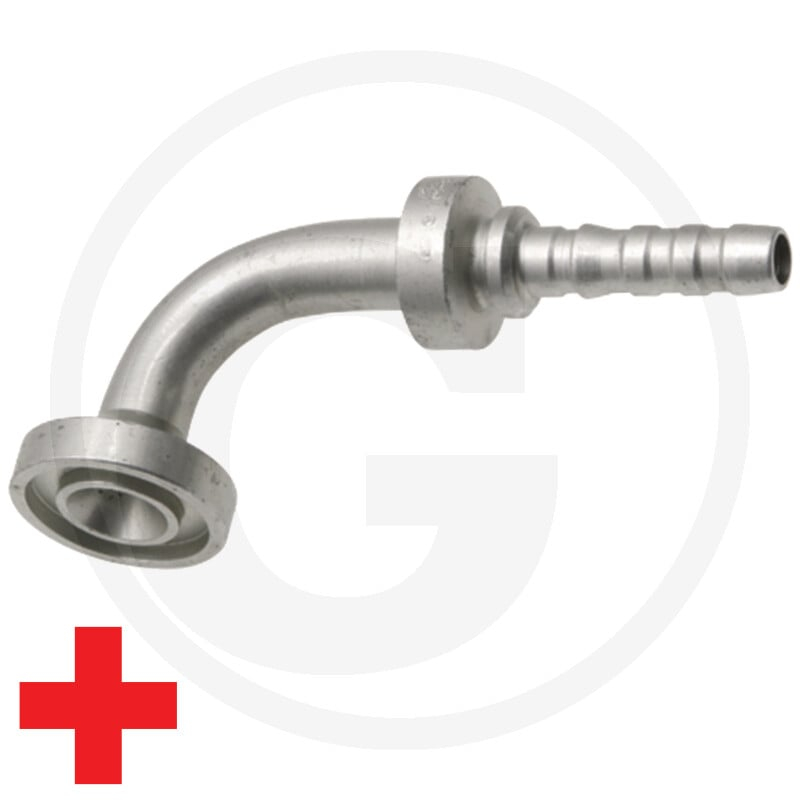

Dieser Gates PNB 12 SFS 3/4" 90°M ist ein SAE-Flansch Schwer 90° und dient als Ersatzteil für Granit Maschinen. Der Flansch besitzt eine Nennweite von DN 12 (1/2") und eine Baugröße-Flansch von 3/4". Die technischen Daten umfassen A (88,0 mm), B (50,5 mm), E (58,0 mm) und K (41,3 mm). Er gehört zur Baureihe 6000 PSI und wiegt 10 g. Als OE-konformer Artikel gewährleistet er eine passgenaue Integration in das System.

Produktdetails
  • Hersteller: Granit
  • Artikelnummer: 81502355
  • Typ: SFS 90°
  • Passend für: Granit Maschinen
  • Kategorie: Ersatzteil
  • Nennweite: DN 12 - 1/2"
  • Baugröße-Flansch: 3/4"
  • A (mm): 88,0
  • B (mm): 50,5
  • E (mm): 58,0
  • K (mm): 41,3
  • Baureihe: 6000 PSI
  • Gewicht: 10 g

Technische Spezifikationen

HerstellerGRANIT
Gewicht0,010 KG
