Startseite » Ersatzteile » Granit » Pn 20 Sfs 3/4'' Cat 90
Ersatzteil

Pn 20 Sfs 3/4'' Cat 90

Art.Nr.11319588

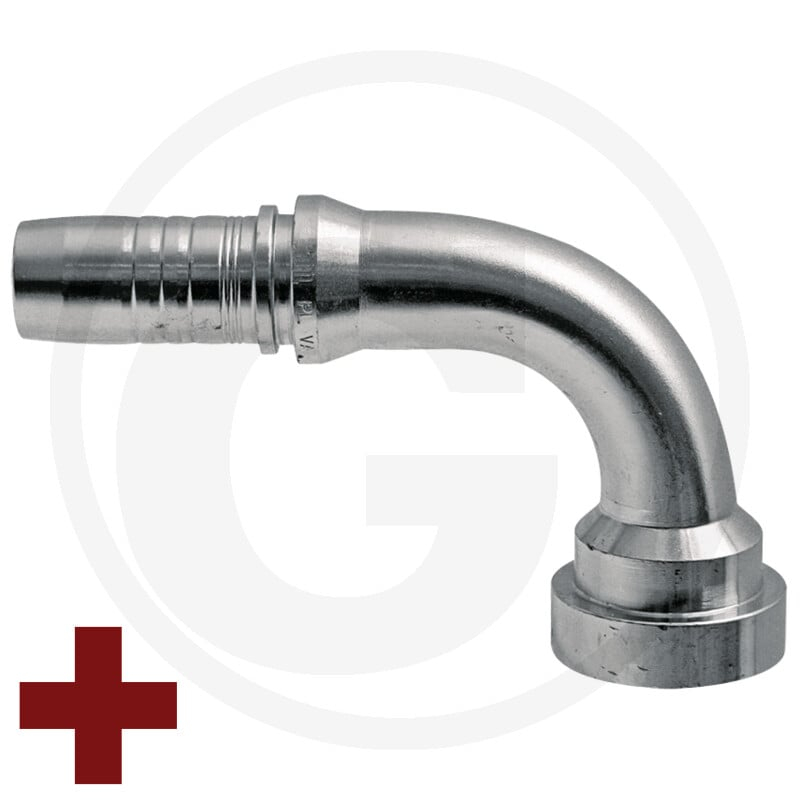

Dieser Manuli PN 20 SFS 3/4" CAT 90° ist ein Flansch, der Bestandteil von Hydrauliksystemen ist. Der Flansch ist für Granit Maschinen geeignet. Er gehört zur Baureihe 9000 PSI und hat eine Typformel SFS 90°. Es handelt sich um einen SAE-Flansch Schwer mit einem Winkel von 90°. Der Anschluss beträgt 3/4". Die Nennweite beträgt DN 19 - 3/4". Die Maße betragen A: 76 mm, B: 16 mm, D: 41.5 mm, E: 68.5 mm und S: 14.3 mm. Das Gewicht des Flansches beträgt 456 g.

Produktdetails
  • Hersteller: Granit
  • Artikelnummer: 11319588
  • Passend für: Granit Maschinen
  • Kategorie: Ersatzteil
  • Baureihe: 9000 PSI
  • Typformel: SFS 90°
  • Anschluss: 3/4"
  • Nennweite: DN 19 - 3/4"
  • A (mm): 76
  • B (mm): 16
  • D (mm): 41.5
  • E (mm): 68.5
  • S (mm): 14.3
  • Gewicht: 456 g
Hinweis

Bitte prüfen Sie die Kompatibilität mit Ihrem spezifischen Maschinmodell.

Technische Spezifikationen

HerstellerGRANIT
Gewicht0,456 KG
