Ersatzteil

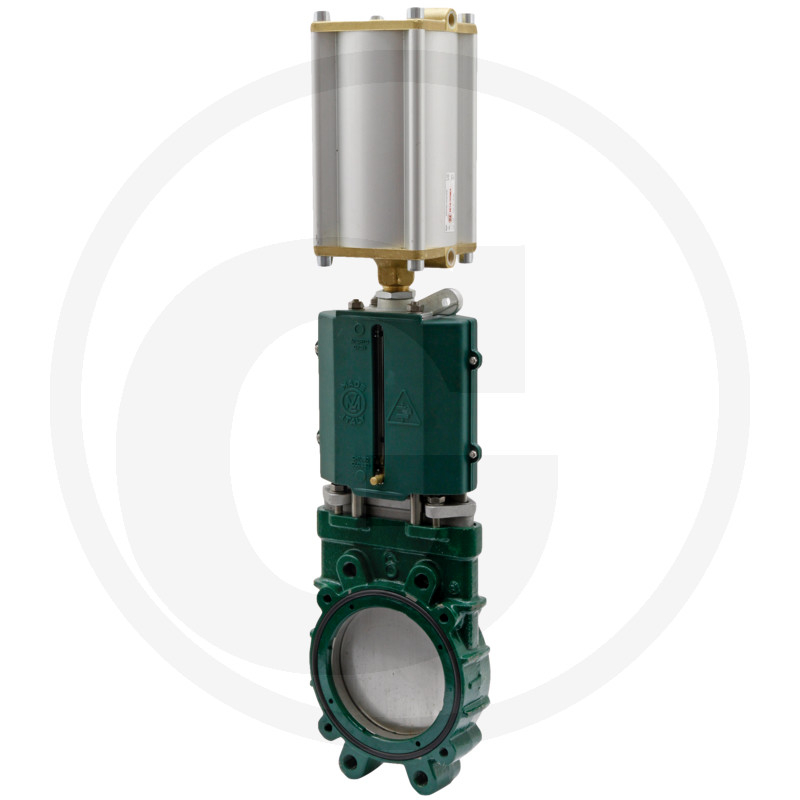

Plattenschieber 3'', Art.0090/0570
€ 774,77 mit Tagesbestellung
€ 736,03 mit Wochenbestellung
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 4050090080570
Bei diesem Produkt handelt es sich um Sperrgut. Frachtkosten werden auf Anfrage berechnet.
Produkt jetzt anfragenProduktbeschreibung
Technische Spezifikationen
| Slide type | Knife gate valve |
| Slide operation | Pneumatic, double-acting |
| Connection type | Flange → flange |
| Nominal width (mm) | 80 |
| Nominal width (inches) | 3" |
| L (mm) | 50 |
| A (mm) | 63 |
| B (mm) | 292 |
| C (mm) | 89 |
| D (mm) | 80 |
| d1 (mm) | M12 |
| d2 (mm) | M16 |
| E (mm) | 152 |
| h (mm) | 344 |
| Reference no. | ARZO0090080570 |
| F (mm) | 10,5 |
| H (mm) | 531 |
| l1 (mm) | 150 |
| l2 (mm) | 160 |
| Version | 3", with double-acting pneumatic cylinder item 0570 |
| Sperrgut | Ja |
| Gewicht | 410,362 KG |
