Ersatzteil

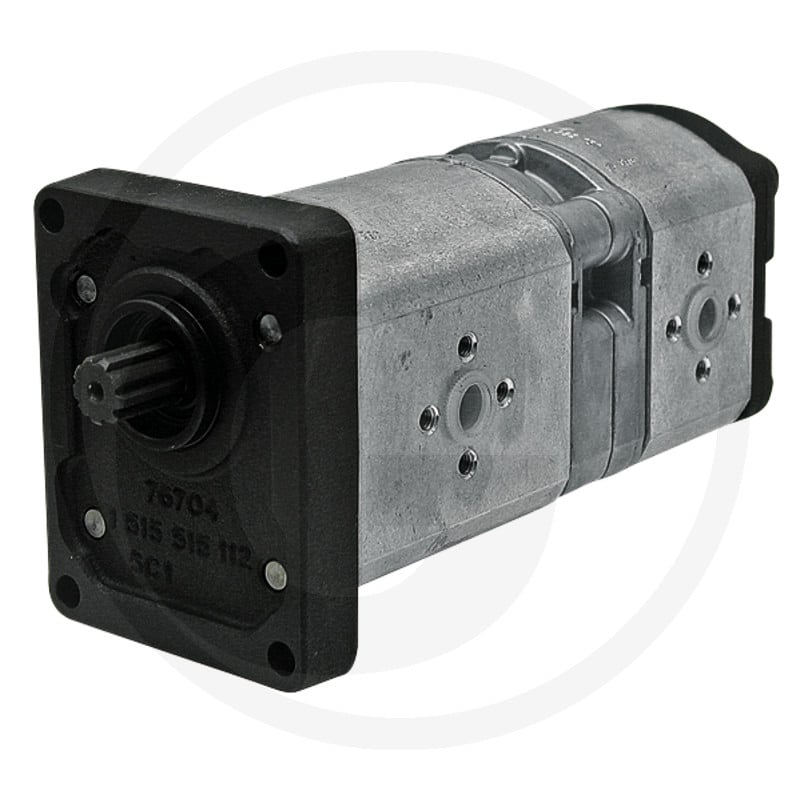

Hydraulikpumpe (2560510765033) Granit
€ 1.079,95inkl. MwSt.
€ 1.025,95 mit Wochenexpress
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 2560510765033
Produktbeschreibung
Technische Spezifikationen
| Output volume (cc/rev) | 22,5 + 8 |
| Drive shaft | Splined shaft B 17 x 14 Z9 |
| Types | AgroStar 6.71, 6.81 |
| Operating pressure max. (bar) | 180/280 |
| Direction of rotation | Right |
| Min. speed (1/min.) | 500 |
| Max. speed (1/min.) | 2500 |
| Line connection suction side | Ø 40 mm, 4 holes, M6 |
| Line connection pressure side | Ø 30mm, 4 holes, M6 |
| Bosch no. | 0510765033 |
| OEM version | 0.163.6350.0 |
| Capacity Q (cc/rev) | 22,5 + 8 |
| Adaptor plate hole pattern (mm) | 71,5 x 96,2 |
| Fitting Ø (mm) | 36,5 |
| Seal material | FKM |
| Weight | 5,99 kg |
| Fig. no. | 21 |
